Contactless Bevel Type Couplings, Non-contact Magnetic Bevel Gears

Contactless Bevel Type Couplings, Non-contact Magnetic Bevel Gears

Size :
(0 customer review)

PRODUCT FEATURES


N52 permanent alloy 61s bracket  magnet gear for dust-free magnetic bevel gears for SOLARs

  • Main material:Bonded NdFeB / Sintered NdFeB (more precisely Neodymium-Iron-Boron)
  • Coating: nickel plated(Normal-X /Enhanced-C)
  • Bracket material :plastic POM / aluminum AL6061 / steel S304 / steel S316
  • Bracket fixing method:single screw clamping / Fixed vertically with multiple screws
  • magnetic isolation ring: steel S45C

Detailed use of materials and dimensions, according to CAD engineering drawings, consultation and customization.

PRODUCT PROPERTIES


Advantages of magnetic gears:
  • Contactless
  • Environmental friendly
  • Permanent-magnetic
  • Maintenance-free
  • no noise

PRODUCT DESCRIPTION

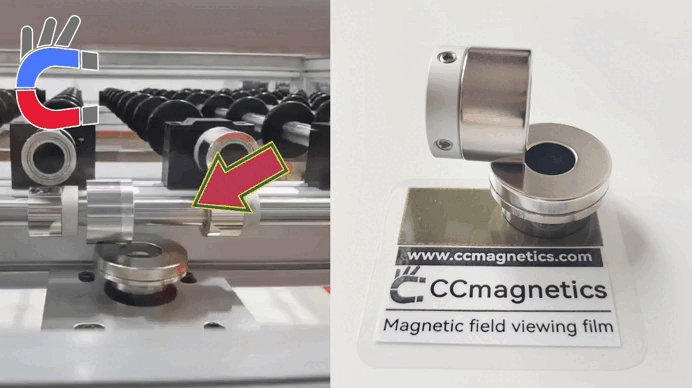

The magnetic gear is a device for non-contact power transmission using the interaction of the magnetic poles' attraction and repulsion. Magnetic gears are products that are driven in a non-contact state on production lines such as LCD, PDP, PCB, OLED, and SOLARCELL that do not allow fine impurities in a clean environment. Replaces mechanical gears that rely on friction to drive.The magnetic gear is composed of two parts: NdFeB magnet ring and bracket base. The magnetic ring of the magnetic gear is the most important part of the magnetic drive wheel. The height of its magnetic area and the number of teeth determine the torque of the magnetic gear.
price/$99.99size/Customization/MD3026/MD3530/MD4735/MD6045/MD6545/MD7552/MD6080/MD60100

PRODUCT PARAMETERS

Type A B C D E F Drive ratio Torque(interval:1mm) Torque(interval:5mm)
MD3026 30 26 8/10/12/15 8/10/12/15 16 21 1:01 0.45Nm 0.04Nm
MD3530 35 30 8/10/12/15 10/12/15/16 16 20 5:04 0.7Nm 0.06Nm
MD4735 47 35 12/15/20 10/12/15/20 21 25 1:01 13Nm 0.18Nm
MD6045 60 45 15/20/25 15/20/25 25 30 1:01 2.5Nm 0.34Nm
MD6545 65 45 15/18/20/25 15/20/25 24 30 1:01 3.9Nm 0.8Nm
MD7552 75 52 18/20/25 15/20/25/30 27 33 1:01 5.6Nm 1.1Nm
MD6080 60 80 14 30 3:04 7Nm 1.5Nm
MD60100 60 100 14 30 1:02 8.5Nm 1.7Nm
The above specifications are our company's standard products, and can also be customized according to the customer's transmission torque, operating temperature, space size and transmission ratio.

WARNING

1. The recommended gap between the two magnetic gears is 0.5mm.
2. Do not perform additional processing on the magnet part, otherwise the magnet may be broken.
3. When the two magnetic gears are close to each other, avoid hitting each other
